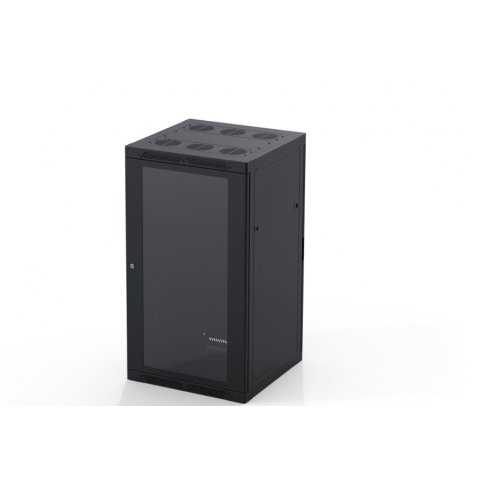

18U High-End Server Rack Enclosure with M6 Threaded Rack Rails and Vented Steel Front Door - 600mm Wide / 600mm Deep

The R4000 represents a new generation of server rack enclosures, designed to meet the demands of modern data centers. With a host of advanced features, including integral cable management bars and adjustable threaded rails, this enclosure combines functionality with a sleek, minimalistic finish. Hidden assembly screws and rolled edges further enhance its aesthetic appeal.

Features Include:

  • Vented Steel Front Door
  • M6 Threaded Adjustable Rack Rails
  • Mounting Depths: from 150mm to 500mm
  • 4 x W0950 Castor/Foot Included
  • Integral Cable Trays

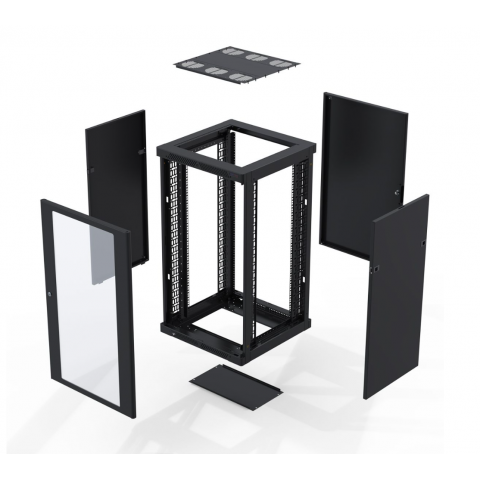

  • Removable Front Doors, Back Doors, and Side Panels
  • Doors Can Be Rotated
  • Magnetic Indents Secure Doors
  • Customisable Tops and Bottoms
  • Multiple Mounting Options for Castors and Feet
  • Integral Cable Management
  • Earth Points and Gangable
  • Hidden Assembly Screws
  • Can be Built as Open, Sides Only, or Closed Tower Versions
  • Optional Side Door Locks Available

This product is also available in custom sizes and colors. Additionally, it is available with polycarbonate, plain steel, or vented steel doors and can be equipped with 10/32 rack rails.

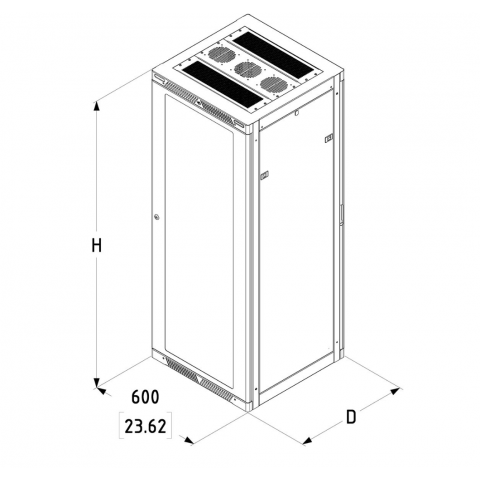

Technical Information:

  • Material: Steel
  • Type: R4000/R5000 Series
  • Size (U): 18U
  • Weight: 55kg
  • Depth: 60cm
  • Door Type: Perforated Steel Door
  • Hole Types: M6 Threaded Holes
  • Height: 90.2cm
  • Finish: Black
