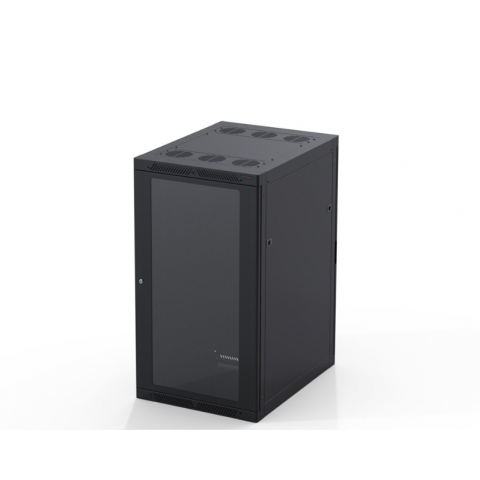

22U Server Enclosure / 10/32 Rails / 600mm x 800mm / Poly Door

In stock
Penn Elcom
Add to wish list

Elevate your server infrastructure with the R5000 series 22U High-End Server Rack Enclosure, setting a new standard in functionality and design for modern data centers and IT environments.

Key Features:

  • Polycarbonate Front Door: Provides visibility and protection with a contemporary look.
  • 10/32 Threaded Adjustable Rack Rails: Allows flexible mounting depths from 150mm to 700mm for accommodating various server equipment.
  • Mounting Depth: 800mm (80cm), ensuring ample space for server installation.
  • 4 X W0950 Castor/Foot Included: Includes mobility options for easy deployment.
  • Integral Cable Trays: Built-in for efficient cable management throughout the rack.
  • Removable Doors and Panels: Facilitates quick access and maintenance.
  • Rotatable Doors: Enhances installation flexibility and accessibility.
  • Magnetic Indents Secure Doors: Ensures doors stay securely closed during operation.
  • Customizable Tops and Bottoms: Allows tailored configurations based on specific needs.
  • Multiple Mounting Options for Castors And Feet: Provides versatility in setup and deployment.
  • Integral Cable Management: Features designed to manage cables effectively within the rack.
  • Earth Points and Gangable: Enables proper grounding and expandability across multiple units.
  • Hidden Assembly Screws: Enhances aesthetics while maintaining structural integrity.

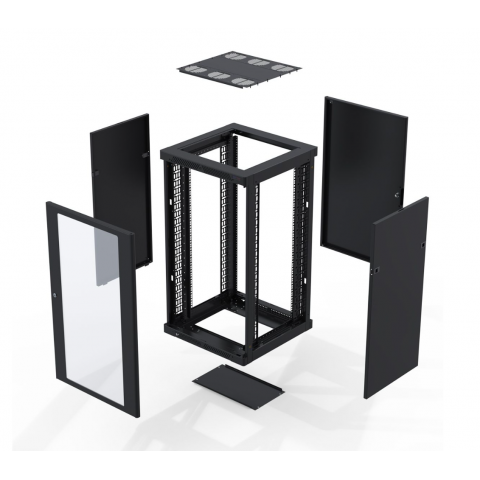

  • Configurable Builds: Can be assembled as open frame, sides only, or closed tower versions to suit different operational requirements.
  • Optional Side Door Locks: Additional security options available for side access.


  • Material: Steel
  • Series: R4000/R5000 Series

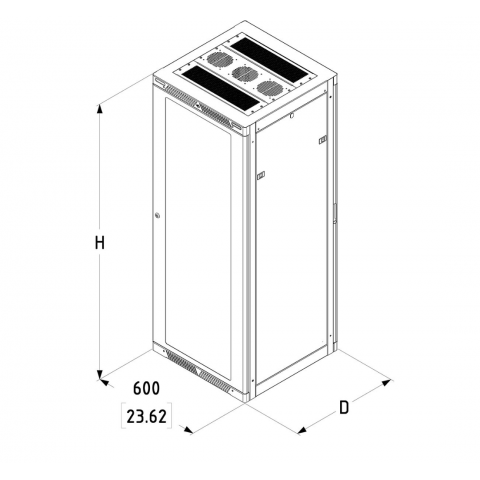

  • Size (U): 22U (1.08m high)
  • Weight: 68kg
  • Depth: 800mm
  • Width: 600mm
  • Finish: Black
  • Door Type: Polycarbonate
  • Hole Types: 10/32 Threaded Holes

Additional Options:

  • Custom Sizes and Colors: Available to match specific installation needs.
  • Door Variants: Options include polycarbonate, plain steel, or vented steel doors.
  • Alternative Rack Rails: Can be configured with 10/32 or M6 threaded rack rails upon request.

The R5000 series is designed to deliver reliability, flexibility, and superior performance, ensuring your critical server equipment is housed securely and efficiently managed in any professional IT environment.
