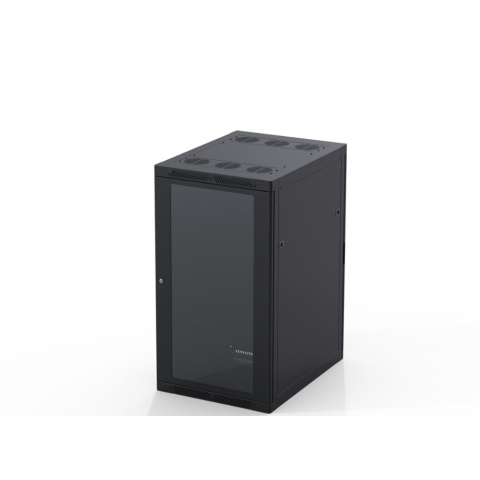

22U Server Enclosure / M6 Rails / 600mm x 800mm / Poly Door

Upgrade your server infrastructure with the advanced R4000 series 22U High-End Server Rack Enclosure, combining innovative features with robust construction to meet modern data center demands.

Key Features:

• Polycarbonate Front Door: Offers visibility and protection with a modern aesthetic.
• M6 Threaded Adjustable Rack Rails: Accommodates mounting depths from 150mm to 700mm for versatile equipment installation.
• Mounting Depth: 800mm (80cm), ideal for various server and networking equipment.
• 4 X W0950 Castor/Foot Included: Provides mobility and stability options right out of the box.
• Integral Cable Trays: Ensures efficient cable management throughout the rack.
• Removable Doors and Panels: Facilitates easy access and maintenance with configurable options.
• Rotatable Doors: Enhances installation flexibility and accessibility.
• Magnetic Indents Secure Doors: Ensures doors stay securely closed during operation.
• Customizable Tops and Bottoms: Allows tailored configurations based on specific needs.
• Multiple Mounting Options for Castors And Feet: Provides flexibility in setup and deployment.
• Integral Cable Management: Built-in features for organizing cables effectively.
• Earth Points and Gangable: Enables proper grounding and expandability across multiple units.
• Hidden Assembly Screws: Enhances aesthetics while maintaining structural integrity.
• Configurable Builds: Can be assembled as open frame, sides only, or closed tower versions to suit various environments.
• Optional Side Door Locks: Additional security options available for side access.

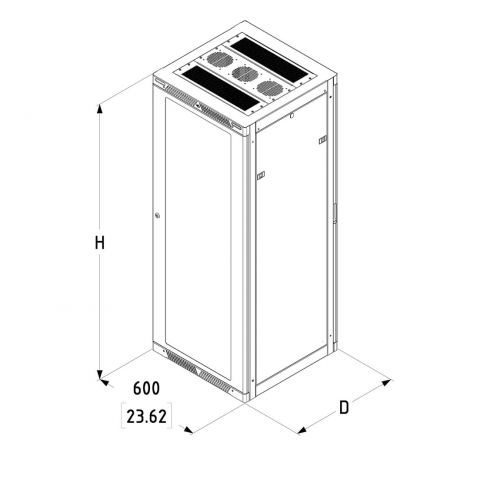

Specifications:

• Material: Steel
• Series: R4000/R5000 Series
• Size (U): 22U (1.08m high)
• Weight: 68kg
• Depth: 800mm
• Width: 600mm
• Finish: Black
• Door Type: Polycarbonate
• Hole Types: M6 Threaded Holes
