Adastra UM Series Ultra Compact Mixer-Amplifiers 100V 30W

In stock
Add to wish list

EAN    5015972213216

Introducing our UM Series Ultra Compact Mixer-Amplifiers, engineered to deliver powerful performance in a sleek and compact design. Ideal for small to medium PA installations, these 100V mixer-amplifiers pack a punch with their versatile features and efficient class D amplifier design.

Feature Specification
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier construction Class D + transformer output
Audio source Internal USB/FM/BT player
Bluetooth version 5.0
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz

Featuring an internal USB/FM/BT audio player, these mixer-amplifiers offer convenient playback options for your audio sources. The microphone input, line input, and USB/FM/BT sections are governed by front panel volume controls and a master volume, providing intuitive control over your sound.

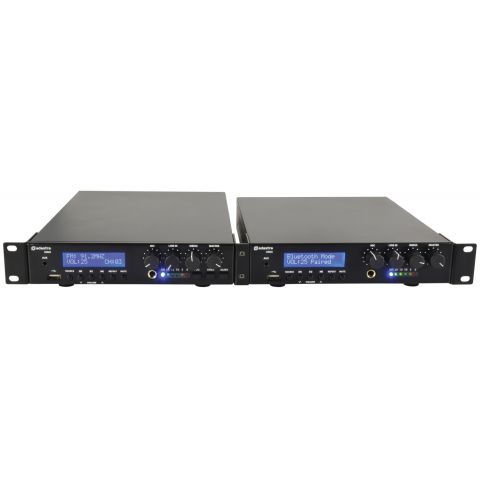

With mono output options to either 100V line or 8 Ohms speaker loads connected via screw terminals on the rear panel, installation is seamless and hassle-free. Supplied with hardware for mounting two units side by side in a 1U 19" rack space, these mixer-amplifiers offer flexibility in setup configurations.

Experience unparalleled versatility and performance with our UM Series Ultra Compact Mixer-Amplifiers. Whether you're amplifying vocals, instruments, or background music, these amplifiers deliver exceptional sound quality in a space-saving package. Elevate your audio experience today!


Manual (953173UK.pdf, 397 Kb) [Download]

Manual (953176UK.pdf, 397 Kb) [Download]

Manual (953179UK.pdf, 397 Kb) [Download]
